Technologies

What we are currently working on

In-house developments that open up new design possibilities.

Black flat cable with multiple conductors
  • ISO certified
  • Made in Germany

When every micrometre counts

Miniaturisation

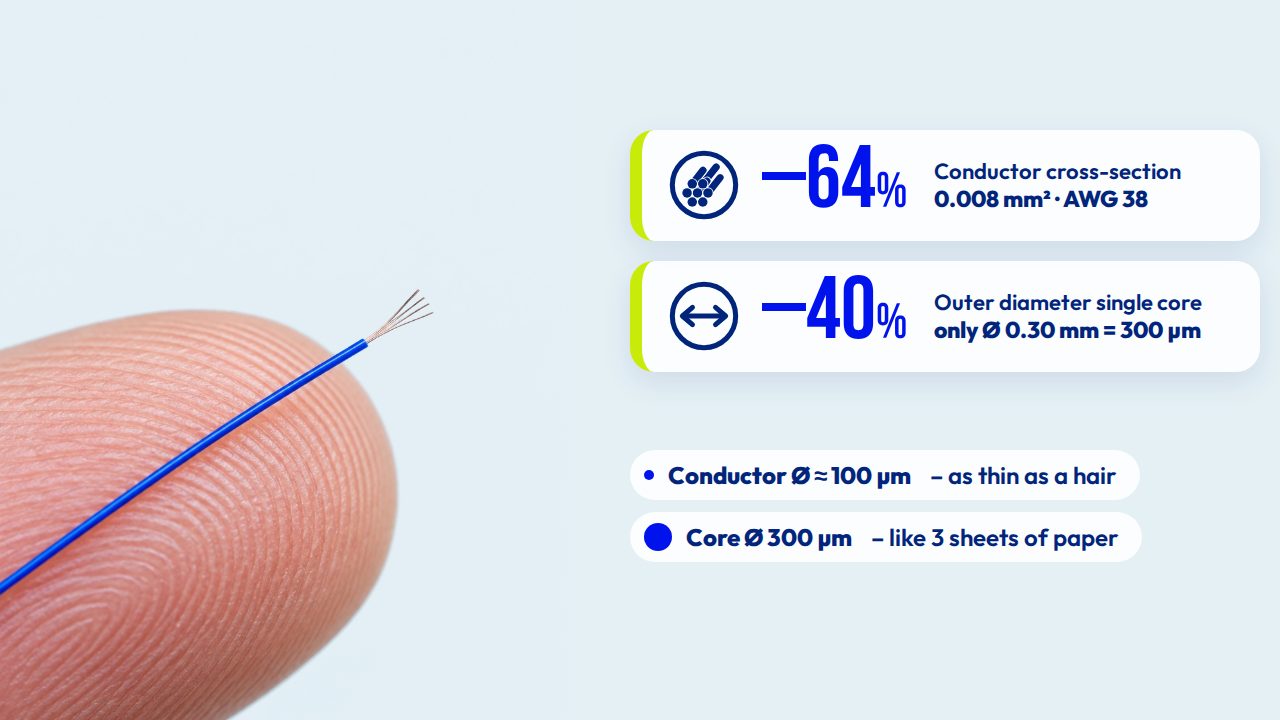

Miniaturised cable next to a fingertip: 64 % smaller conductor cross-section, 40 % smaller outer diameter

At Kabel Sterner, we transform your individual ideas into precision cut-to-length cable designs. From the initial consultation through to development and series production, we support you with technical expertise and many years of experience.
Together, we create innovative solutions that are tailored exactly to your requirements.

Find out more

HYGIENE MEETS CABLE TECHNOLOGY

FDA sheath

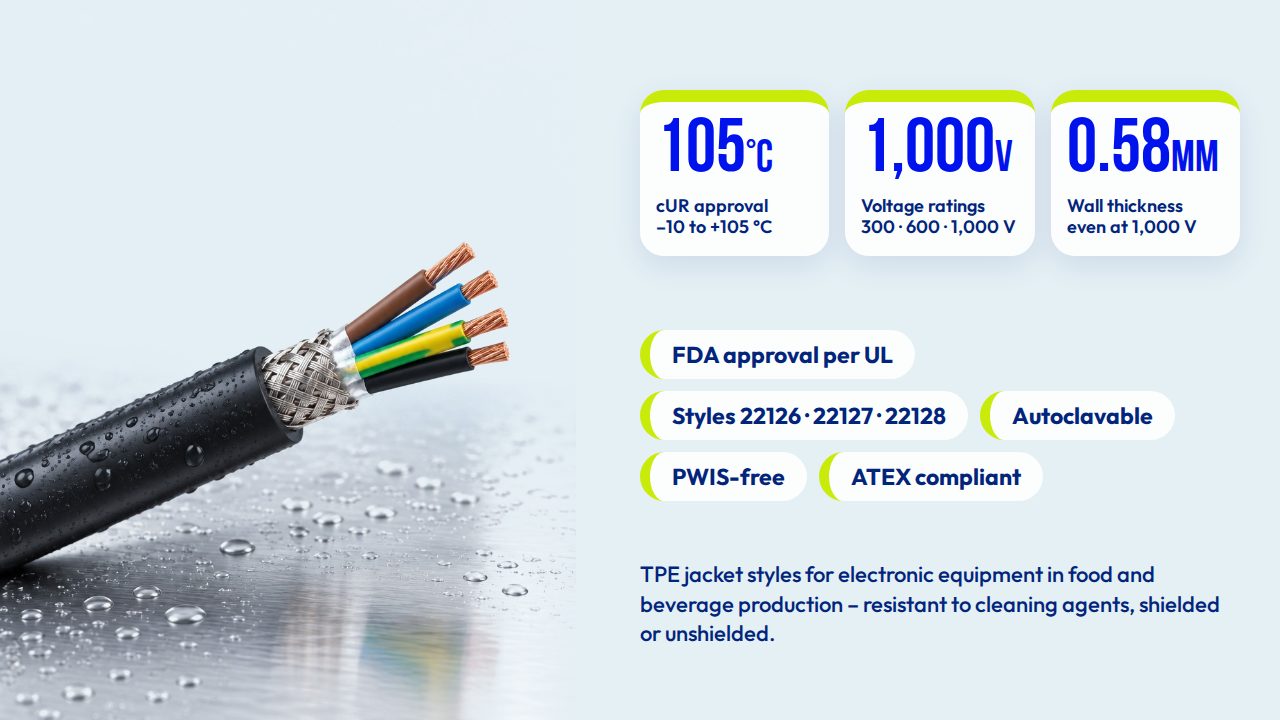

FDA sheathed cable with key data: 105 °C, 1,000 V, 0.58 mm wall thickness

Hygiene, cleaning cycles and continuous temperature – in food and beverage production, cables must be able to do more than just carry electricity. With our TPE sheath styles 22126, 22127 and 22128, we offer FDA-approved sheaths with cUR approval for 105 °C, in three voltage classes and with particularly thin wall thicknesses. This leaves space in compact assemblies – and the cable withstands cleaning agents and steam sterilisation.

Find out more

Sheath and core insulation compound with cUR

TPE sheath

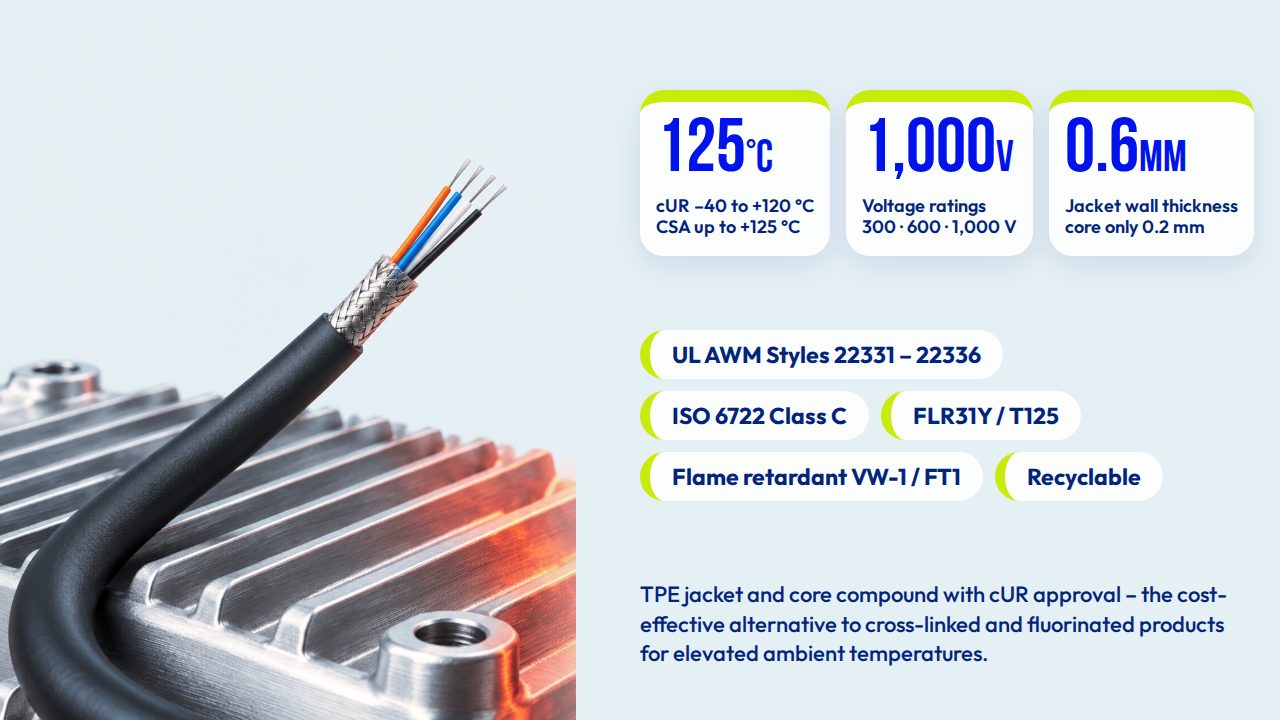

TPE cable with key data: 125 °C, 1,000 V, 0.6 mm wall thickness

Engine compartments, control cabinets, machines with increased ambient temperatures: where things get permanently hot, cross-linked or fluorinated materials have mostly been used until now – expensive, complex and non-recyclable. Our new TPE sheath and TPE core insulation compounds offer clear advantages over other plastic compounds in the temperature range up to +120 °C (CSA +125 °C): cUR-approved, flame-retardant, extremely thin-walled and without cross-linking.

Further information
